ORDER CODE	RANGE (MM)	LOGIC	O/P	MOUNTING	SPECIFICATIONS

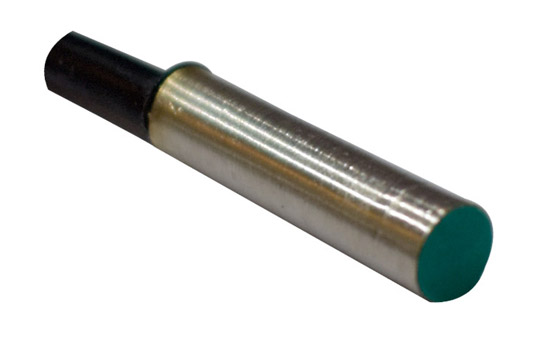

N1.5 BS1	1.5 mm	PNP	NO	FLUSH	Voltage 5-40 V DC Max Load Current <300mA Voltage Drop <2V DC Leakage Current <8mA@12 V DC Switching Freq 1000Hz LED Indication, Reverse Polarity Protected, Over Load Protected, Short Circuit Proof, Switching Impulse Suppression, PVC Cable
N1.5 BS2		PNP	NC
N1.5 BR1		NPN	NO
N1.5 BR2		NPN	NC

**SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE**
