AC VOLT METER

MODEL NO. MANUAL TERMINAL CONNECTION DIMENSIONS (MM) AUX VOLTAGE DIGITS VOLTAGE RANGE RESOLUTION

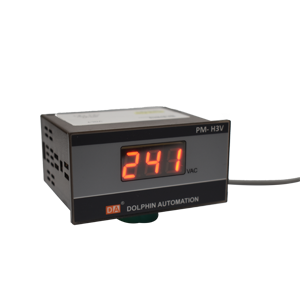

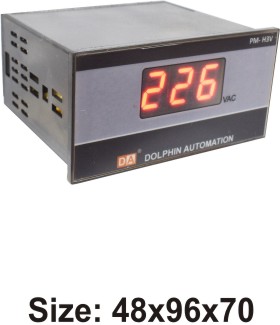

PM-H3V 48X96X70 STD 180 TO 250 VAC ON DEMAND 12/24/48 VDC 110 VAC 3 1/2 DIGITS, SIZE 0.56 " 0 TO 500 VAC 1 VOLT

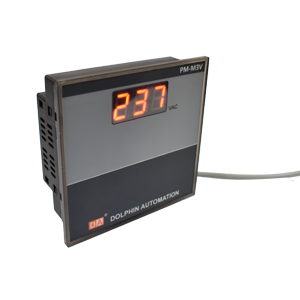

PM-M3V 96X96X50

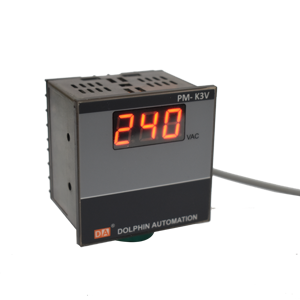

PM-K3V 72X72X50

AC CURRENT METER

MODEL NO. MANUAL TERMINAL CONNECTION DIMENSIONS (MM) AUX VOLTAGE DIGITS AMPERE RANGE RESOLUTION

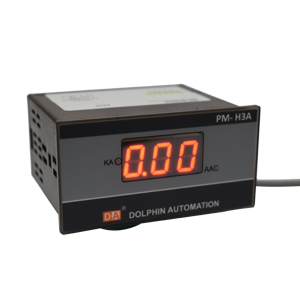

PM-H3A 48X96X70 STD 180 TO 250 VAC ON DEMAND 12/24/48 VDC 110 VAC 3 1/2 DIGITS, SIZE 0.56" 0 To 4000 Amp with programmable CT Ratio 1 Amp

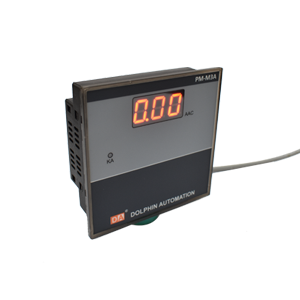

PM-M3A 96X96X50

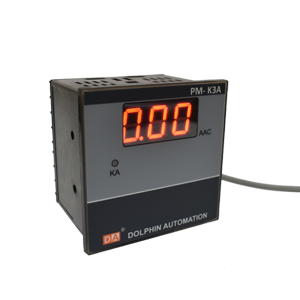

PM-K3A 72X72X50

VOLT + CURRENT METER

MODEL NO. MANUAL TERMINAL CONNECTION DIMENSIONS (MM) AUX VOLTAGE DIGITS RANGE RESOLUTION
PM-H3VA 48X96X70 STD 180 TO 250 VAC ON DEMAND 12/24/48 VDC 110 VAC 3 1/2 DIGITS, SIZE 0.56"
  • Voltage:0-500 VAC
  • Current: 0 To 4000 Amp with programmable CT Ratio
 1 Unit

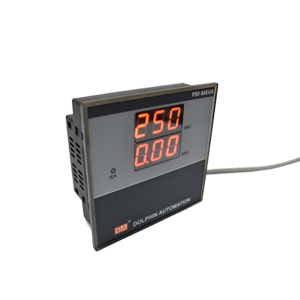

PM-M3VA 96X96X50
PM-K3VA 72X72X50

**SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE**
